Product Details
Place of Origin: China
Brand Name: GRUMMAN
Certification: ISO9001
Model Number: PM180/SG180 HOWO Water Tank Fire Truck
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: Naked
Delivery Time: negotiate
Payment Terms: L/C
Supply Ability: 100 unit
Full-load Mass (kg): |
33945 |
Overall Dimensions (mm): |
10180×2550×3740 |
Specific Power (kW/t): |
10 |
Chassis Brand/model: |
Sinotruk / ZZ5357TXFV464MF5 |
Number Of Passengers (person): |
2+4 |
Effluent Standard: |
Country Ⅵ |
Fire-extinguishing Agent Loading Capacity (L): |
18000 (water: 15000, Class B Foam: 3000) |
Brand / Model Of Fire Pump: |
Xiong Zhen / CB10 / 100-XZ |
Brand / Model Of Fire Gun: |
Wist / PLKD 8 / 80 |
Foam Proportional Mixer Brand / Model: |
Xiong Zhen / PHZ100 |
Full-load Mass (kg): |
33945 |
Overall Dimensions (mm): |
10180×2550×3740 |
Specific Power (kW/t): |
10 |
Chassis Brand/model: |
Sinotruk / ZZ5357TXFV464MF5 |
Number Of Passengers (person): |
2+4 |
Effluent Standard: |
Country Ⅵ |
Fire-extinguishing Agent Loading Capacity (L): |
18000 (water: 15000, Class B Foam: 3000) |
Brand / Model Of Fire Pump: |
Xiong Zhen / CB10 / 100-XZ |
Brand / Model Of Fire Gun: |
Wist / PLKD 8 / 80 |
Foam Proportional Mixer Brand / Model: |
Xiong Zhen / PHZ100 |

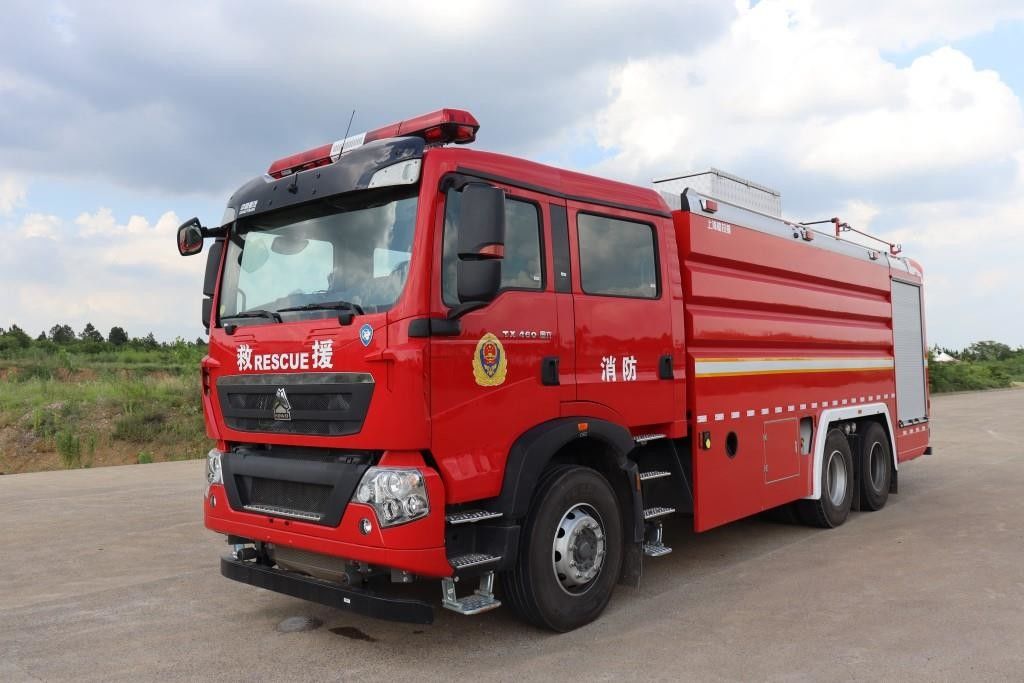

PM180/SG180 HOWO Water Tank Fire Truck
1.Put out class A and B large fires.Supply water or foam mixture to other fire-fighting equipment.It is used in urban buildings such as large shopping malls, supermarkets, warehouses, factories, residential buildings, elevated roads, ports, airports, tunnels and other fire fighting.
2. Main performance parameters
| Full-load mass (kg): | 33945 |
| Overall dimensions (mm): | Length 10180 wide 2550 high 3740 |
| Specific power (kW / t): | 10 |
| Chassis brand / model: | Sinotruk / ZZ5357TXFV464MF5 |
| Number of passengers (person) | 2+4 |
| effluent standard: | country Ⅵ |
| Approach angle / departure angle of (°) | 17/11 |
| Fire-extinguishing agent loading capacity (L): | 18000 (water: 15000, Class B foam: 3000) |
| Brand / model of fire pump: | Xiong zhen / CB10 / 100-XZ |
| Pump pressure / flow rate (MPa / (L / s)): | 1.0/100 |
| Brand / model of fire gun: | Wist / PLKD 8 / 80 |
| Cannn pressure / flow (MPa / (L / s)): | 0.8/80 |
| Foam proportional mixer brand / model: | Xiong zhen / PHZ100 |
| Mixing Solution Flow Rate (L/s): | 0～100 |
| Top vehicle speed (km / h): | 95 |
| Maximum chassis power (kW): | 341 |
3. Product features:
| Series unified design, high product maturity, stable and reliable performance. |
| The chassis is equipped with electric control dynamic system for high driving safety. |
4. About US
Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded April 1989, its history can trace back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years historical heritage and specialized in fire equipment manufacture filled many domestic void. It is also a supplier of China military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets production equipments, annual roll out1000fire trucks
The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.
Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.
5. FAQ:
Q1. Is the product made in China?
A: yes
Q2: Where product delivery time?
A: The delivery time of the general Chinese chassis products is four months
03: Where is delivery method?
A: Steam transportation and sea transportation
04: Where is the payment method?
A: Letter of credit, other ways can be negotiated.
