Product Details
Place of Origin: China
Brand Name: GRUMMAN
Certification: ISO9001
Model Number: RXR-M60D FIRE-FIGHTING ROBOTS
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: Naked
Delivery Time: negotiate
Payment Terms: L/C
Supply Ability: 50 unit
Complete Machine Quality (kg): |
200 |
Overall Dimensions (mm): |
1440×800×780 |
Ground Clearance (mm): |
115 |
Climbing Ability (°): |
Climbing 35 |
Angle (°): |
25 |
Driving Speed (km/h): |
0-6 (variable Variable) |
Battery: |
48V / 30Ah Lithium Battery |
Drive Motor: |
2×1000W/48V |
Working Lamp: |
230W LED Lamp |
Water Gun Synchronizer: |
55W / 24V Hernia Lamp |
Endurance (H): |
2 |
Fire-extinguishing Water Cannon Model: |
American Amilaurus 3480 + 5177 |
Pressure (MPa): |
0.5~0.8 |
Range (m): |
≥65 |
Spray Angle (°): |
120 |
Horizontal Rotation Angle (°): |
-16~90 |
Maximum Flow Rate (L/s): |
60 (automatically Adjustable) |
Complete Machine Quality (kg): |
200 |
Overall Dimensions (mm): |
1440×800×780 |
Ground Clearance (mm): |
115 |
Climbing Ability (°): |
Climbing 35 |
Angle (°): |
25 |
Driving Speed (km/h): |
0-6 (variable Variable) |
Battery: |
48V / 30Ah Lithium Battery |
Drive Motor: |
2×1000W/48V |
Working Lamp: |
230W LED Lamp |
Water Gun Synchronizer: |
55W / 24V Hernia Lamp |
Endurance (H): |
2 |
Fire-extinguishing Water Cannon Model: |
American Amilaurus 3480 + 5177 |
Pressure (MPa): |
0.5~0.8 |
Range (m): |
≥65 |
Spray Angle (°): |
120 |
Horizontal Rotation Angle (°): |
-16~90 |
Maximum Flow Rate (L/s): |
60 (automatically Adjustable) |

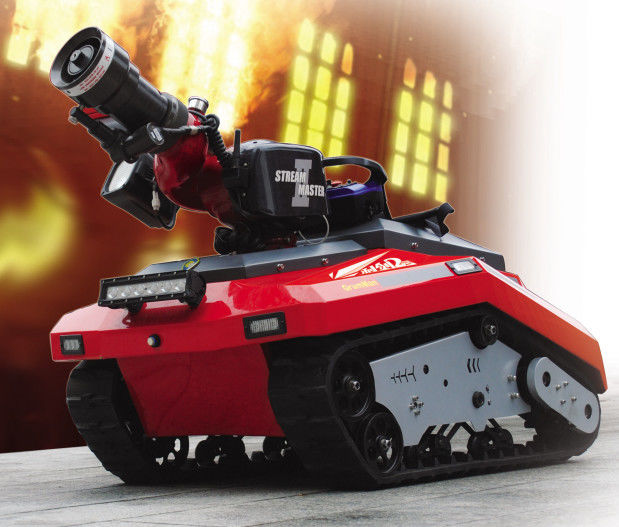

RXR-M60D FIRE-FIGHTING ROBOTS
1.Used for public (railway) tunnel fire; subway station and tunnel fire; underground facilities and freight yard fire; large span and large space fire; petrochemical oil depot and refinery fire; attack and cover of dangerous fire targets; fire fighting not accessible to personnel.
2. Main performance parameters
| Chassis parameters | |
| Complete machine quality (kg) | 200 |
| Overall dimensions (mm) | Length 1440 wide 800 height 780 |
| Ground Clearance (mm) | 115 |
| Climbing ability (°) | Climbing 35 |
| angle (°) | 25 |
| Driving speed (km/h) | 0-6 (variable variable) |
| battery | 48V / 30Ah lithium battery |
| Drive motor | 2×1000W/48V |
| Working lamp | 230W LED lamp |
| water gun synchronizer | 55W / 24V hernia lamp |
| endurance (H) | 2 |
| Water mist self-protection device | Body automatic water spray protection system |
| control form | electronic wireless remote control (300 m) |
| Fire extinguishing parameters | |
| fire-extinguishing water cannon model | American Amilaurus 3480 + 5177 |
| Pressure (MPa) | 0.5~0.8 |
| Range (m) | ≥65 |
| Spray Angle (°) | 120 |
| Horizontal rotation angle (°): angle (°) | -16~90 |
| Maximum flow rate (L/s) | 60 (automatically adjustable) |
| Water supply interface | 280 copper interfaces |
3. Product features:
RXR-M60D fire fighting robot is powered by lithium battery, driven by motor, equipped with all-terrain track, and equipped with 60 L/s imported fire gun. It is flexible and can turn in situ, climb hills, climb stairs and cross ditches, and can be suitable for rapid combat needs in complex terrain situations.
4. About US
Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded April 1989, its history can trace back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years historical heritage and specialized in fire equipment manufacture filled many domestic void. It is also a supplier of China military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets production equipments, annual roll out1000fire trucks
The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.
Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.
5. FAQ:
Q1. Is the product made in China?
A: yes
Q2: Where product delivery time?
A: The delivery time of the general Chinese chassis products is four months
03: Where is delivery method?
A: Steam transportation and sea transportation
04: Where is the payment method?
A: Letter of credit, other ways can be negotiated.
