Product Details
Place of Origin: China
Brand Name: GRUMMAN
Certification: ISO9001
Model Number: JP32
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: Naked
Delivery Time: negotiate
Payment Terms: L/C
Supply Ability: 100 unit
Full-load Mass (kg): |
≤31450 |
Overall Dimensions (mm): |
9780×2540×3800 |
Specific Power (kW / T): |
≥10 |
Chassis Brand / Model: |
Sinotruk / ZZ5357TXFV464MF1 |
Number Of Passengers (person): |
2 |
Effluent Standard: |
Country Ⅵ |
Approach Angle / Departure Angle Of (°): |
19/10 |
Top Vehicle Speed (km / H): |
95 |
Fire-extinguishing Agent Loading Capacity (L): |
6900 (water: 3300, Class B Foam: 1600, Dry Powder 2000) |
Brand / Model Of Fire Pump: |
Dali / CB10 / 100-PSP1600 |
Full-load Mass (kg): |
≤31450 |
Overall Dimensions (mm): |
9780×2540×3800 |
Specific Power (kW / T): |
≥10 |
Chassis Brand / Model: |
Sinotruk / ZZ5357TXFV464MF1 |
Number Of Passengers (person): |
2 |
Effluent Standard: |
Country Ⅵ |
Approach Angle / Departure Angle Of (°): |
19/10 |
Top Vehicle Speed (km / H): |
95 |
Fire-extinguishing Agent Loading Capacity (L): |
6900 (water: 3300, Class B Foam: 1600, Dry Powder 2000) |
Brand / Model Of Fire Pump: |
Dali / CB10 / 100-PSP1600 |

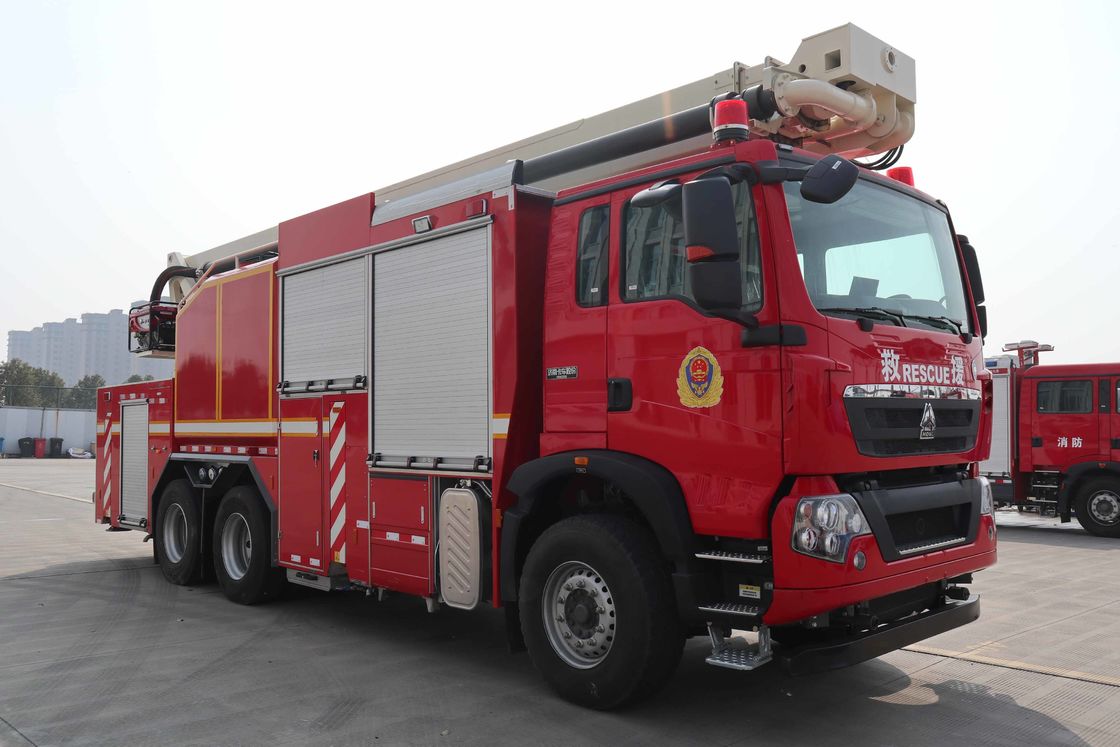

JP32 HOWO Water Tower Fire Truck Length 9780 wide 2540 height 3800
1. Used in urban armed police fire brigades and enterprises and other professional fire brigades, applied to fires in large shopping malls, supermarkets, residences, elevated roads, large warehouses, oil tanks, large-span factories, etc., below 40 metres, and can also be applied to fires in ports and harbours, large-scale chemical factories, airports, tunnels, oilfields and other fires.
2. Main performance parameters
Full-load mass (kg): | ≤31450 |
Overall dimensions (mm): | Length 9780 wide 2540 height 3800 |
Specific power (kW / t): | ≥10 |
Chassis brand / model: | Sinotruk / ZZ5357TXFV464MF1 |
Maximum chassis power (kW): | 341 |
Number of passengers (person) | 2 |
effluent standard: | country Ⅵ |
Approach angle / departure angle of (°) | 19/10 |
Top vehicle speed (km / h): | 95 |
Minimum turning radius (m): | ≤8.5 |
Maximum operation height (m): | ≥32 |
Maximum operating range (m): | ≥18 |
Arm Change Angle (°): |
Expansion arm 0~80 (relative level) |
Slim range: | 360° continuous rotation |
Leg spread time (s): | ≤40 |
Boom lifted to maximum height and rotated 90° time (s): | ≤135 |
Fire-extinguishing agent loading capacity (L): | 6900 (water: 3300, Class B foam: 1600, dry powder 2000) |
Brand / model of fire pump: | Dali / CB10 / 100-PSP1600 |
Pump pressure / flow rate (MPa / (L / s)): | 1.0/100 |
Brand / model of fire gun: | POK/ PZKD10 ▪5~15/80•25-SNAKE4.0 |
Cannn pressure / flow (MPa / (L / s)): | 1.0/80 |
Foam proportional mixer Model: | Foreman / PHA125B |
Mixing Solution Flow Rate (L/s): | 30~125 |
3. Product features:
High safety: the boom, leg and sub-frame are made of high strength welded steel, the boom is polygonal structure to improve the rigidity of the boom, the safety factor is higher than the national standard requirements, to ensure the absolute safety of personnel. The vehicle is equipped with more than ten safety protection functions, such as soft leg protection and broken chain protection, to ensure the safety of operation and can operate at ease. |
The vehicle is equipped with dry powder-nitrogen system, dry powder tank needs to add dry powder extinguishing agent or ultra-fine dry powder extinguishing agent, can independently carry out "water + foam + powder aerosol" fire fighting work, without the support of other vehicles. It is the first choice of the vehicle for the firefighters to put out all kinds of fires. |
Compact structure, good passability, strong mobility: the total length of the vehicle is less than 10m, the minimum shape size of China is 32 meters high jet fire truck. |
Intelligent and humanized: the leg has one key extension, adjustment and one key recovery function. The boom frame has the one-click automatic recovery function. |
Visualized human-computer interaction: the turntable operation office is equipped with color display screen, which can display the working position and state parameters of the boom in real time, which can improve the operation efficiency. |
The legs are operated by the wired remote control. During the operation process, the surrounding environment and movement of the legs can be observed at the same time, so that the vision is wider and the operation is safer. |
Advanced control system: the electro-hydraulic proportion control adopts the international famous brand control components. The hydraulic system selects the most advanced load sensitive pump + load sensitive electrohydraulic proportional valve set system, which is energy saving and environmental protection. Multiple movements of the arm can be carried out at the same time and the speed does not affect each other, realizing the accurate and smooth operation of the legs and arm movements. |
Optimal boom form: the boom type of 3 telescopic arm + 1 folding arm can not only cross obstacles, but also operate simpler and faster than the pure curved arm structure, and enables the boom to reach the specified working position at the fastest speed. |
4. About US:
Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded April 1989, its history can trace back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years historical heritage and specialized in fire equipment manufacture filled many domestic void. It is also a supplier of China military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets production equipments, annual roll out1000fire trucks
The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.
Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.
5. FAQ:
Q1. Is the product made in China?
A: yes
Q2: Where product delivery time?
A: The delivery time of the general Chinese chassis products is four months
03: Where is delivery method?
A: Steam transportation and sea transportation
04: Where is the payment method?
A: Letter of credit, other ways can be negotiated.
