Product Details
Place of Origin: China
Brand Name: GRUMMAN
Certification: ISO9001
Model Number: PM250/SG250 SITRAK Water Tank Fire Truck
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: Naked
Delivery Time: negotiate
Payment Terms: L/C
Supply Ability: 100 unit
Full-load Mass (kg): |
≤43000 |
Overall Dimensions (mm): |
11830×2520×3700 |
Specific Power (kW / T): |
≥9 |
Chassis Brand / Model: |
Shandeka / ZZ5446V516MF1 |
Number Of Passengers (person)ty: |
2 |
Effluent Standard: |
Country Ⅵ |
Fire-extinguishing Agent Loading Capacity (L): |
24510 (water: 19510, Foam: 5000) |
Brand / Model Of Fire Pumpr: |
Xiong Zhen/ CB10 / 150-XZ |
Brand / Model Of Fire Gun: |
Wist/PLKD12/120 |
Foam Proportional Mixer Brand / Model: |
Foreman / PHA240B |
Full-load Mass (kg): |
≤43000 |
Overall Dimensions (mm): |
11830×2520×3700 |
Specific Power (kW / T): |
≥9 |
Chassis Brand / Model: |
Shandeka / ZZ5446V516MF1 |
Number Of Passengers (person)ty: |
2 |
Effluent Standard: |
Country Ⅵ |
Fire-extinguishing Agent Loading Capacity (L): |
24510 (water: 19510, Foam: 5000) |
Brand / Model Of Fire Pumpr: |
Xiong Zhen/ CB10 / 150-XZ |
Brand / Model Of Fire Gun: |
Wist/PLKD12/120 |
Foam Proportional Mixer Brand / Model: |
Foreman / PHA240B |

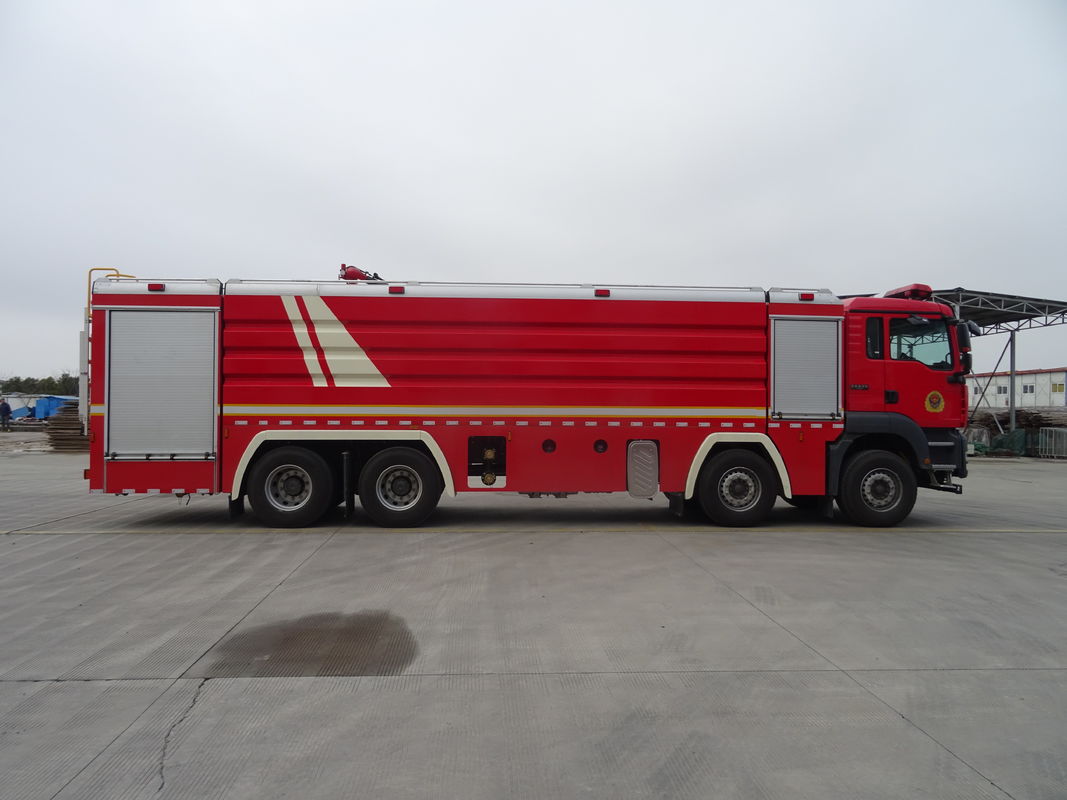

PM250/SG250 SITRAK Water Tank Fire Truck Length 11830 wide 2520 high 3700
1.Used in some special fire, because the general material combustion can be isolated with water, but some oil or flammable and explosive products with water has no effect, and the foam on the fire truck is a special flame retardant cover, only the use of it on the burning material to isolate in order to achieve the role of extinguishing, so in many refineries, petrochemicals, airports, terminals, etc., there is a large number of oil substances exist in place to be use this kind of fire truck.
2. Main performance parameters
Full-load mass (kg): | ≤43000 |
Overall dimensions (mm): | Length 11830 wide 2520 high 3700 |
Specific power (kW / t): | ≥9 |
Chassis brand / model: | Shandeka / ZZ5446V516MF 1 |
Number of passengers (person) | 2 |
effluent standard: | country Ⅵ |
Approach angle / departure angle of (°) | 19/11 |
Fire-extinguishing agent loading capacity (L): | 24510 (water: 19510, foam: 5000) |
Brand / model of fire pump: | Male true / CB10 / 150-XZ |
Pump pressure / flow rate (MPa / (L / s)): | 1.0/150 |
Brand / model of fire gun: | Wist / PLKD12 / 120 |
Cannn pressure / flow (MPa / (L / s)): | 1.2/120 |
Foam proportional mixer brand / model: | Foreman / PHA240B |
Foam fluid flow rate (L/s): | 30~240 |
Top vehicle speed (km / h): | 95 |
Minimum turning radius (m): | 14 |
3. Product features:
Series unified design, high product maturity, stable and reliable performance. |
The chassis is equipped with electric control dynamic system for high driving safety. |
[Intelligent matching] Intelligent human-computer interaction operation interface of the intelligent central control system of the cab. |
[Intelligent matching] Intelligent management of central control, control the switch of internal and external lighting warning lamps of the vehicle, and alarm. |
[Intelligent selection] Vehicle central control information query function, the vehicle central control can be a real-time query of the vehicle data, historical fault alarm, etc. |
[Intelligent matching] power distribution management system, can monitor the power, current and other parameters and data query. |
[Intelligent matching] Vehicle information two-dimensional code query function, provide vehicle two-dimensional code can query operation methods and maintenance data for users to view in real time. |
[Intelligent selection] Vehicle fault dynamic prediction output function. The control system can conduct self-test on the status of the input and output equipment, judge the changes before the equipment failure, and output the warning prompt for inspection. |
[Intelligent selection] outlet pressure protection, pump outlet increase pressure detection in the pressure mutation of the chassis speed protection due to the sudden increase in pressure damage to the operator. |
[Intelligent matching] The pump room instrument panel has the dynamic display function of the pump pipeline, which can intuitively display the flow picture of the valve opening and closing, the pipeline flow state and feedback the data of the hydraulic system. |
4. About US
Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded April 1989, its history can trace back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years historical heritage and specialized in fire equipment manufacture filled many domestic void. It is also a supplier of China military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets production equipments, annual roll out1000fire trucks
The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.
Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.
5. FAQ:
Q1. Is the product made in China?
A: yes
Q2: Where product delivery time?
A: The delivery time of the general Chinese chassis products is four months
03: Where is delivery method?
A: Steam transportation and sea transportation
04: Where is the payment method?
A: Letter of credit, other ways can be negotiated.
