Product Details
Place of Origin: China
Brand Name: GRUMMAN
Certification: ISO9001
Model Number: AP35 Compressed Air Foam Fire Truck
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: Naked
Delivery Time: negotiate
Payment Terms: L/C
Supply Ability: 100 unit
Full-load Mass (kg): |
16000 |
Overall Dimension(mm): |
8400 X 2530 X 3600 |
Chassis Brand / Model: |
MAN/TGM18.320 |
Number Of Passengers (person): |
2+3+4 |
Effluent Standard: |
Country Ⅵ |
Approach Angle / Departure Angle Of (°): |
15/12 |
Fire-extinguishing Agent Loading Capacity (L): |
3500 (water: 3000, Class A Foam: 200, Class B Foam: 300) |
Brand / Model Of Fire Pump: |
HALE/ CB10/60-MBP |
Brand / Model Of Fire Gun: |
ALCO/PSKD10/40W-APF2 |
Compressed Air Foam System Brand / Model: |
One Seven/OS-5200-020-B |
Full-load Mass (kg): |
16000 |
Overall Dimension(mm): |
8400 X 2530 X 3600 |
Chassis Brand / Model: |
MAN/TGM18.320 |
Number Of Passengers (person): |
2+3+4 |
Effluent Standard: |
Country Ⅵ |
Approach Angle / Departure Angle Of (°): |
15/12 |
Fire-extinguishing Agent Loading Capacity (L): |
3500 (water: 3000, Class A Foam: 200, Class B Foam: 300) |
Brand / Model Of Fire Pump: |
HALE/ CB10/60-MBP |
Brand / Model Of Fire Gun: |
ALCO/PSKD10/40W-APF2 |
Compressed Air Foam System Brand / Model: |
One Seven/OS-5200-020-B |

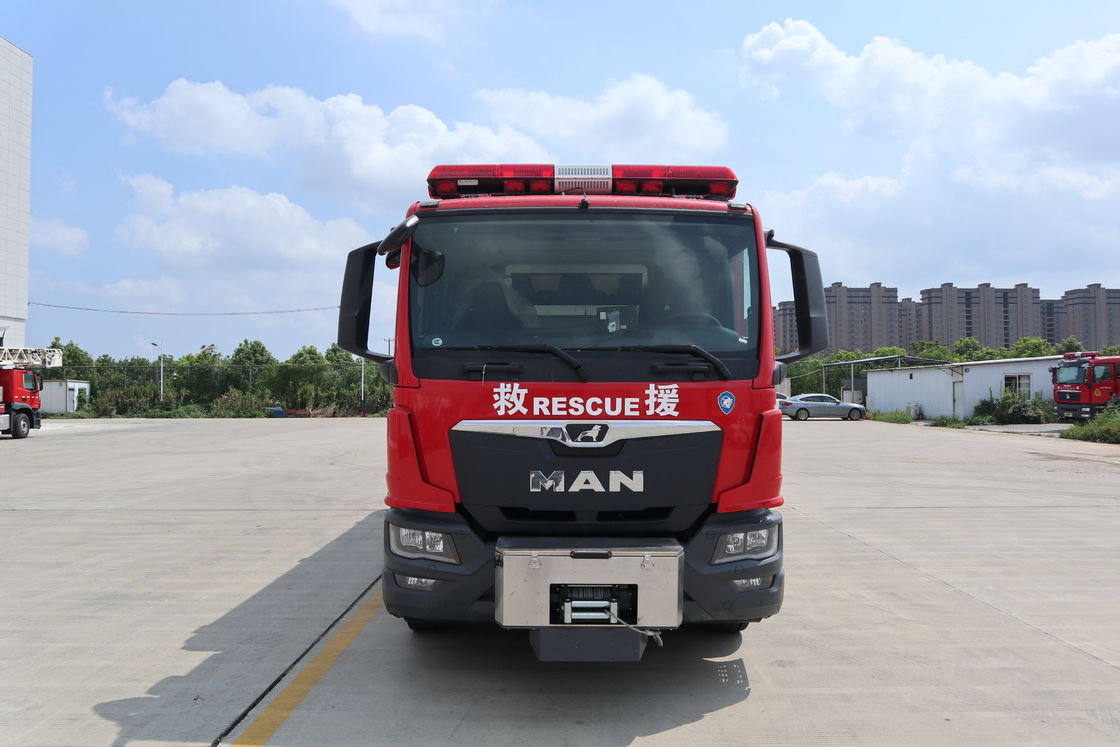

AP35 Compressed Air Foam Fire Truck
1. Fighting class A and B fires, as well as dealing with other types of fires, high-rise building fires, extinguishing heights of up to 200 meters or more, urban disaster scene rescue and assistance.
2. Main performance parameters
| Full-load mass (kg): | 16000 |
| Overall dimensions (mm): | Length 8400 wide 2530 height 3600 |
| Specific power (kW / t): | 14.5 |
| Chassis brand / model: | MAN/TGM18.320 |
| Number of passengers (person) | 2+3+4 |
| effluent standard: | country Ⅵ |
| Approach angle / departure angle of (°) | 15/12 |
| Fire-extinguishing agent loading capacity (L): |
3500 (water: 3000, class A foam: 200, class B foam: 300) |
| Brand / model of fire pump: | HALE/ CB10/60-MBP |
| Pump pressure / flow rate (MPa / (L/s)): | 1.0/60 |
| Brand / model of fire gun: | ALCO/PSKD10/40W-APF2 |
| Cannn pressure / flow (MPa / (L/s)): | 1.0/40 |
| Compressed air foam system brand / model: | One seven/OS-5200-020-B |
| Maximum vehicle speed (km/h): | 95 (electronic speed limit) |
| Minimum turning radius (m): | 8.5 |
| Maximum chassis power (kW): | 235 |
3. Product features:
| Series unified design, high product maturity, stable and reliable performance; beautiful appearance, vehicle surround lighting; operation position away from the water outlet, with low liquid level protection and other safety functions. |
| Advanced compressed air foam system, efficient and fast fire extinguishing. The system is equipped with automatic pressure keeping function and foam generation room for high foam generation quality; the system automatically allocates flow according to the requirements to ensure efficient fire fighting and foam saving. |
| The chassis is equipped with electric control dynamic system for high driving safety. |
4. About US
Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded April 1989, its history can trace back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years historical heritage and specialized in fire equipment manufacture filled many domestic void. It is also a supplier of China military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets production equipments, annual roll out1000fire trucks
The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.
Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.
5. FAQ:
Q1. Is the product made in China?
A: yes
Q2: Where product delivery time?
A: The delivery time of the general Chinese chassis products is four months
03: Where is delivery method?
A: Steam transportation and sea transportation
04: Where is the payment method?
A: Letter of credit, other ways can be negotiated.
