Home > products > Fire Engine Truck > GF60 Custom Dry Powder Fire Truck Country Ⅵ Hydraulic Platform Fire Engine

GF60 Custom Dry Powder Fire Truck Country Ⅵ Hydraulic Platform Fire Engine

Product Details

Place of Origin: China

Brand Name: GRUMMAN

Certification: ISO9001

Model Number: GF60 Dry powder fire truck

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiate

Packaging Details: Naked

Delivery Time: negotiate

Payment Terms: L/C

Supply Ability: 100 unit

Get Best Price
Highlight:

25000kg hydraulic platform fire engine

,

Swatow hydraulic platform fire engine

,

6000L dry powder custom fire trucks

Full-load Mass (kg):
25000
Overall Dimensions (mm):
10200×2540×3850
Chassis Brand / Model:
Swatow/ZZZ5356V524MF5
Number Of Passengers (person):
2+4
Effluent Standard:
Country Ⅵ
Fire Extinguishing Agent Loading Capacity (L):
6000 (dry Powder: 2×3000)
Dry Powder Gun Brand/model:
Shangge/PF5~14/40
Top Vehicle Speed (km/h):
90
Full-load Mass (kg):
25000
Overall Dimensions (mm):
10200×2540×3850
Chassis Brand / Model:
Swatow/ZZZ5356V524MF5
Number Of Passengers (person):
2+4
Effluent Standard:
Country Ⅵ
Fire Extinguishing Agent Loading Capacity (L):
6000 (dry Powder: 2×3000)
Dry Powder Gun Brand/model:
Shangge/PF5~14/40
Top Vehicle Speed (km/h):
90

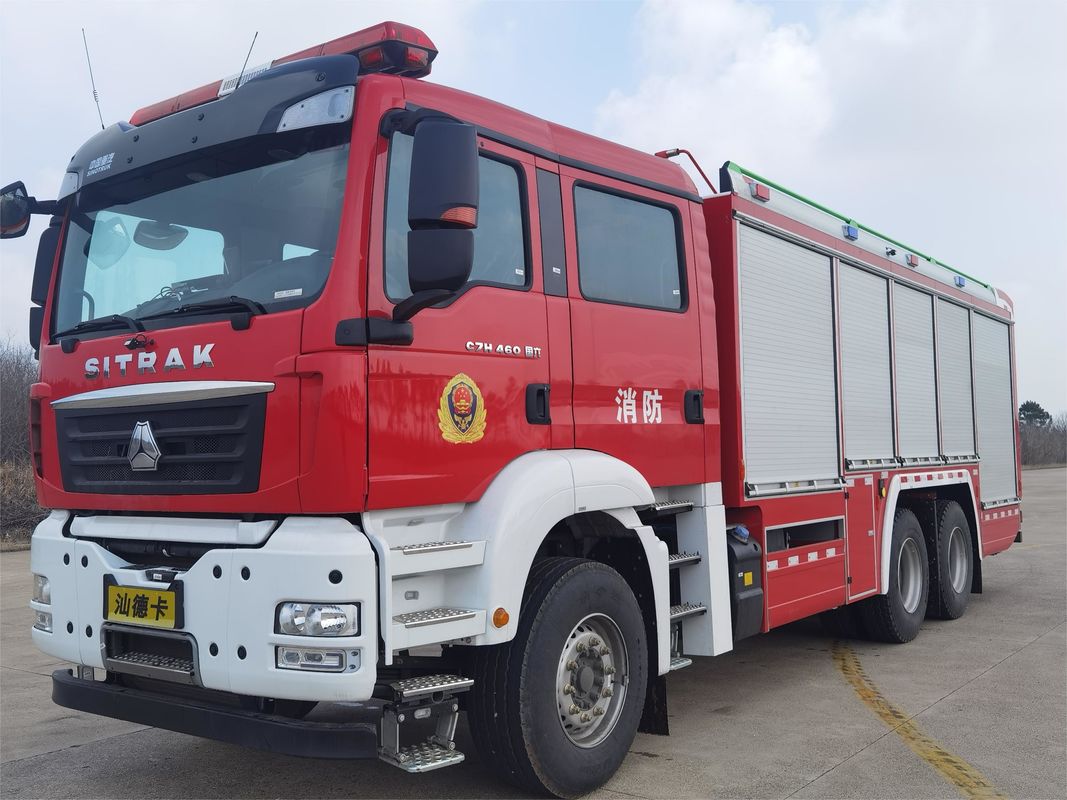

GF60 Custom Dry Powder Fire Truck Country Ⅵ Hydraulic Platform Fire Engine

GF60 Dry powder fire truck Country Ⅵ 2+4



1. It is mainly used for extinguishing fires with dry powder extinguishing agent, thus it is suitable for extinguishing fires in flammable and combustible liquids, flammable gases and electrically charged equipment. Dry powder fire trucks equipped with water tanks and fire pumps can also use water to extinguish fires in solid materials in general.



2. Main performance parameters

Full-load mass (kg): 25000
Overall dimensions (mm):  Length 10200 wide 2540 high 3850
Specific power (kW / t): ≥13
Chassis brand/model:  Swatow/ZZZ5356V524MF5
Number of passengers (person) 2+4
effluent standard:  country Ⅵ
Approach angle/departure angle of (°) 19/11
Fire extinguishing agent loading capacity (L): 6000 (dry powder: 2×3000)
Dry powder gun brand/model:  Shangge/PF5~14/40
Pump pressure/flow rate (MPa / (L / s)): 1.0/170
Gun pressure range/effective injection rate(MPa/(kg/s)): 0.5~1.4/35
Minimum turning radius (m): 11.5
Top vehicle speed (km / h): 90
Chassis rated power (kW): 341



3. Product features:

Series of unified design, high maturity, stable, and reliable performance.
The chassis is equipped with electric control system, with high traveling safety.
Two sets of independent dry powder fire extinguishing systems, high fire extinguishing strength.

GF60 Custom Dry Powder Fire Truck Country Ⅵ Hydraulic Platform Fire Engine 0



4. About US

Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded in April 1989, its history can be traced back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years of historical heritage and specialization in fire equipment manufacture filled many domestic voids. It is also a supplier of China's military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets of production equipment, annual roll out1000fire trucks



The company can provide a complete range and series of fire equipment: water/foam/dry powder fire trucks, a rescue truck, multi-task lighting vehicle, and especially better in building emergency chemical relief vehicles, long-range and high-volume supply fire trucks, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot, and pumping system, etc.



Persists in the “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate the domestic market and expand overseas space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organizations to cooperate with the fire equipment business.



5. FAQ:

Q1. Is the product made in China?

A: yes

Q2: Where product delivery time?

A: The delivery time of the general Chinese chassis products is four months

03: Where is delivery method?

A: Steam transportation and sea transportation

04: Where is the payment method?

A: Letter of credit, other ways can be negotiated.
