Product Details
Place of Origin: China
Brand Name: GRUMMAN
Certification: ISO9001
Model Number: PM35/SG35 HOWO Water Tank Fire Truck
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiate
Packaging Details: Naked
Delivery Time: negotiate
Payment Terms: L/C
Supply Ability: 100 unit
Full-load Mass (kg): |
≤11600 |
Overall Dimensions (mm): |
7000×2370×3370 |
Specific Power (kW / T): |
≥11 |
Number Of Prospective Passengers (person): |
3+3 |
Chassis Brand / Model: |
Heavy Duty Truck / ZZ1127K4515F1Z |
Effluent Standard:: |
Country Ⅵ |
Proximity Angle / Departure Angle (°): |
18/13 |
Fire-extinguishing Agent Loading Capacity (L):: |
3500 (water: 3000, Class B Foam: 500) |
Brand / Model Of Fire Pump: |
Xiong Zhen / CB10 / 40 |
Chassis Rated Power (kW): |
140 |
Full-load Mass (kg): |
≤11600 |
Overall Dimensions (mm): |
7000×2370×3370 |
Specific Power (kW / T): |
≥11 |
Number Of Prospective Passengers (person): |
3+3 |
Chassis Brand / Model: |
Heavy Duty Truck / ZZ1127K4515F1Z |
Effluent Standard:: |
Country Ⅵ |
Proximity Angle / Departure Angle (°): |
18/13 |
Fire-extinguishing Agent Loading Capacity (L):: |
3500 (water: 3000, Class B Foam: 500) |
Brand / Model Of Fire Pump: |
Xiong Zhen / CB10 / 40 |
Chassis Rated Power (kW): |
140 |

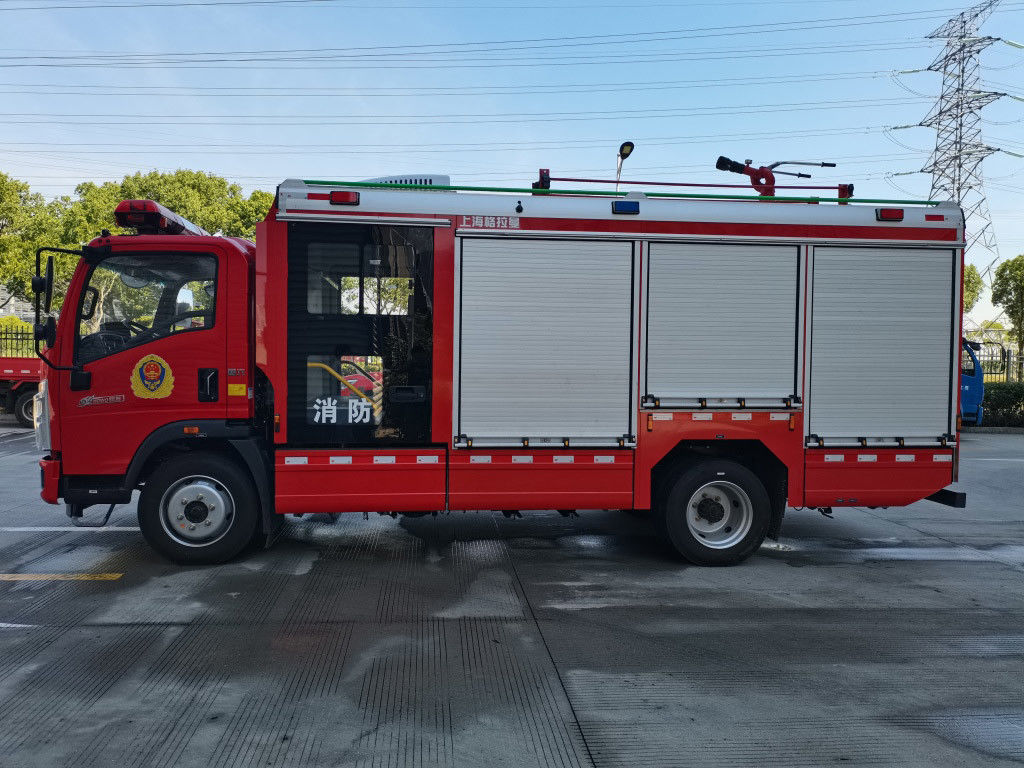

PM35/SG35 HOWO Water Tank Fire Truck 3500 (water: 3000, Class B foam: 500)
1.Fire fighting vehicles are specially designed for firefighting, and their main purpose is to provide firefighters with a large amount of water for spraying and irrigation during the firefighting process. Equipped with large-capacity water tanks, fire pumps, sprinkler guns, water hoses and other firefighting equipment, they are capable of providing rapid response and firefighting operations at the scene of a fire.
Translated with www.DeepL.com/Translator (free version)
2. Main performance parameters
| Full-load mass (kg): | ≤11600 |
| Overall dimensions (mm): | Length 7000 wide 2370 height 3370 |
| Specific power (kW / t): | ≥11 |
| Chassis brand / model: | Heavy Duty Truck / ZZ1127K4515F1Z |
| Number of prospective passengers (person): | 3+3 |
| effluent standard: | country Ⅵ |
| Proximity angle / departure angle (°): | 18/13 |
| Fire-extinguishing agent loading capacity (L): | 3500 (water: 3000, Class B foam: 500) |
| Brand / model of fire pump: | Xiong zhen / CB10 / 40 |
| Pump pressure / flow rate (MPa / (L / s)): | 1.0/40 |
| Brand / model of fire gun: | West / PL8/32 |
| Cannn pressure / flow (MPa / (L / s)): | 0.8/32 |
| Maximum vehicle speed (km/h) | 90 |
| Chassis rated power (kW) | 140 |
3. Product features:
| Series of unified design, high maturity, stable and reliable performance. |
| The pump operation panel is far away from the water outlet of the pump to avoid accidental injury. |
4. About US
The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.
Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.
5. FAQ:
Q1. Is the product made in China?
A: yes
Q2: Where product delivery time?
A: The delivery time of the general Chinese chassis products is four months
03: Where is delivery method?
A: Steam transportation and sea transportation
04: Where is the payment method?
A: Letter of credit, other ways can be negotiated.
