35 Degree Slope Automatic Fire Fighting Robot Colossus Robot Firefighter 2370MM

Product Details

Place of Origin: China

Brand Name: GRUMMAN

Certification: ISO9001

Model Number: RXR-YM90000D ELEVATING AND EXHAUSTING SMOKE FIRE-FIGHTING

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiate

Packaging Details: Naked

Delivery Time: negotiate

Payment Terms: L/C

Supply Ability: 50 unit

Get Best Price
Highlight:

1000m Automatic Fire Fighting Robot

,

80L/s Automatic Fire Fighting Robot

,

colossus robot firefighter 80L/s

Overall Dimension (mm):
2370×1500×2250
Overall Weight (kg):
2660
Driving Speed (km/h):
0-5.5 (two Gears)
Climbing Ability:
Climbing A Slope Of 35°
Material:
Aluminum
Vertical Barrier Height (mm):
200
Waterbelt Towing Capacity:
Total Length Of 400 M DN80 Filled Water Belt
PRemote Control Distance (m):
1000m (open Environment)
Fire Monitor Rated Flow (L/s):
80 (automatic Flow)
Water Range (m):
80
Foam Range (m):
75
Overall Dimension (mm):
2370×1500×2250
Overall Weight (kg):
2660
Driving Speed (km/h):
0-5.5 (two Gears)
Climbing Ability:
Climbing A Slope Of 35°
Material:
Aluminum
Vertical Barrier Height (mm):
200
Waterbelt Towing Capacity:
Total Length Of 400 M DN80 Filled Water Belt
PRemote Control Distance (m):
1000m (open Environment)
Fire Monitor Rated Flow (L/s):
80 (automatic Flow)
Water Range (m):
80
Foam Range (m):
75
35 Degree Slope Automatic Fire Fighting Robot Colossus Robot Firefighter 2370MM

RXR-YM90000D ELEVATING AND EXHAUSTING SMOKE FIRE-FIGHTING climbing a slope of 35°



1. Adopting hydraulic crawler walking chassis, flexible and maneuverable, can turn in place, strong climbing ability, can cross the barrier, strong off-road ability, can adapt to complex terrain.



2.  Main performance parameters

Overall dimension (mm) 2370*1500*2250
Overall weight (kg) 2660
Driving speed (km/h) 0-5.5 (two gears)
Climbing ability climbing a slope of 35°
Vertical barrier height (mm) 200
Waterbelt towing capacity total length of 400 m DN80 filled water belt
Remote control distance (m) 1000m (open environment)
fire monitor Rated flow (L/s) 80 (automatic flow)
Water range (m) 80
Foam range (m) 75





3.  Product features:

(1)Strong fire fighting ability: equipped with a fine water mist smoke exhaust fan, smoke discharge of 90000 m ³ / h, water mist range of 50 m, can conduct positive and negative pressure smoke exhaust, fine water mist fire, fire cooling, suppression and dilution of toxic and harmful combustible and explosive gas, change the upper and lower tuyere, haze, dust removal, etc.; also equipped with American Amilon imported fire water gun PLKD80ZB, a fire foam gun, fire water gun flow of 80 L/s, a range of 80m, DC, flowering, spray and flow electric remote control automatically adjustable; foam gun range of 75 m;

(2)Strong power: original imported diesel engine of Italian Fiat 93kw with strong power; maintenance-free oil-cooled system with simple maintenance;

(3) Strong terrain adaptability: using hydraulic crawler walking chassis, flexible mobility, steering in situ, strong climbing ability, obstacle crossing, strong off-road ability, can adapt to complex terrain;

(4)Convenient control: portable wireless remote control, remote control distance of 1000 meters, can remote control the machine all action (including start, stall, forward, backward, steering, fire gun pitch, rotation, flow regulation, warning lights, lights, etc.), controller chassis walking mechanism remote control handle has two, also has a strong interference environment of wired remote control machine action and emergency manual control;

(5)Strong hose towing ability: can drag the total length of 400 meters DN80 filled water belt forward;

(6) With the function of remote control unloading, it can remotely control the robot to be separated from the hose;

(7)The vehicle self-insurance function: robot fuselage has full surrounded by automatic water spray protection system, with 12 spray nozzle: left side right 4, front and rear each 2, evenly distribution, form a water mist protective circle, surrounded by fire fighting robot, can effectively prevent the surrounding environment of thermal radiation into, and at the same time for the robot, guarantee the safe and stable operation of the robot in the fire environment, automatically open when fire fighting operation;

(8)Night work function: with two high-brightness xenon headlights, two gun head searchlights and red and blue flash light warning, to meet the needs of night work;

(9)Can work continuously for a long time: fuel is added while uninterrupted operation, the continuous working time is up to 16 hours, and the 50L diesel tank can ensure high-speed continuous driving for 4 hours;

(10) Smooth driving: the speed can drive fast, but also climb at low speed;

(11)Reliable quality: fire gun, hydraulic pump, valve group, walking reducer and other key parts are imported from Europe and the United States;

(12)Stable and reliable braking: automatic hydraulic brake device, stable braking, reliable standing slope;

(13)Equipped with a fast charging device, which is used for quick charging in the case of power loss;

(14)Using integrated control instrument, remote control and car body instrument can display the engine speed, fuel oil level, generator power generation indication, oil pressure alarm indication, cylinder temperature alarm indication and other important information;

(15)Industrial appearance design, the cover using anti-corrosion materials, mold manufacturing;

(16)Optional remote video monitoring, remote monitoring of toxic and harmful gas, remote environmental monitoring and other functions.

(17)Industrial appearance design, won the 2012 China Innovative Design Red Star Award- -Supreme Gold Award, along with the high-speed railway EMU; the cover adopts anti-corrosion materials and mold manufacturing.

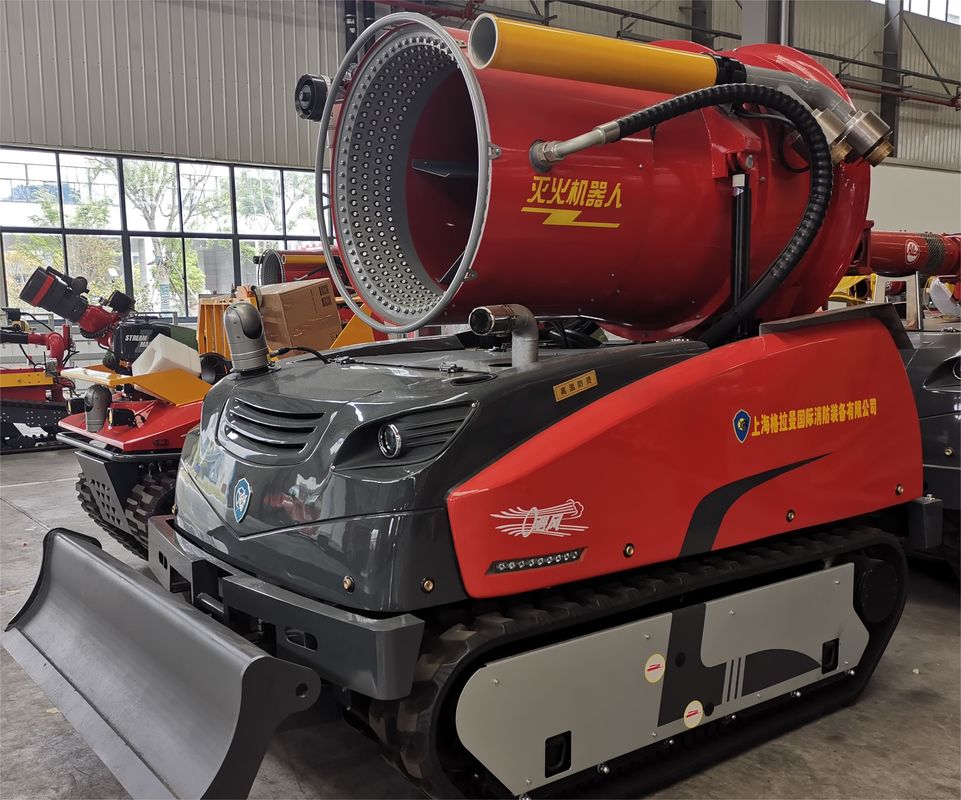

35 Degree Slope Automatic Fire Fighting Robot Colossus Robot Firefighter 2370MM 0



4.  About US

Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded April 1989, its history can trace back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years historical heritage and specialized in fire equipment manufacture filled many domestic void. It is also a supplier of China military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets production equipments, annual roll out1000fire trucks



The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.



Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.
