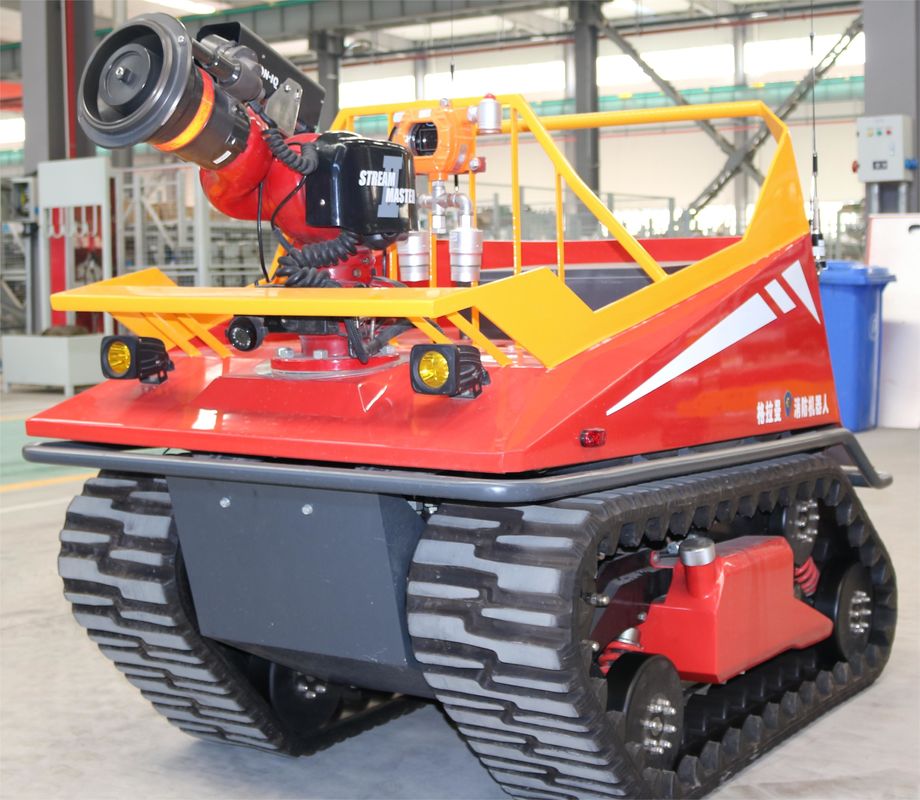

RXR-M120D Robot Fire Fighter 8.5km/H Robotic Fire Fighting Vehicle

RXR-M120DFIRE-FIGHTING ROBOTS 8.5km/h

1. Effectively replace the trailer gun, mobile gun, the use of their own power to remote control the fire gun to the required location; effectively replace the fire fighters close to the fire source and dangerous places to carry out reconnaissance, fire extinguishing, smoke exhaust and other operations, to avoid unnecessary casualties.

2. Main performance parameters

3. Product features:

(1)  Fast driving speed: the maximum speed is 8.5 km/h, the fastest of similar products in China;

(2) Strong fire fighting ability: equipped with imported large flow water/foam dual-use fire gun (fast-mounted foam gun pipe), all aluminum alloy material, flow up to 120 L/s, range up to 90m, can blossom, DC injection, flow automatically adjustable;

(3) Strong terrain adaptability and passability: hydraulic crawler walking chassis, flexible, steering in situ, strong climbing ability (35°, 26°), 300mm, strong cross-country ability, can adapt to complex terrain; with four elastic support, central suspension crawler structure, more suitable for cross-country road surface;

(4) Fast clamshell design, convenient maintenance; rear pedal structure, suitable for personnel to ride; overhead equipment rack is suitable for equipment placement;

(5) Convenient control: portable wireless remote control, can remotely control the machine all actions (including start, stall, forward, backward, steering, fire gun pitch, turn, swing, flowering, dc, warning lights, etc.), also has a strong interference environment of wired remote control machine action and emergency manual control;

(6) Strong hose towing ability: can drag the total length of 200 meters DN80 filled water belt forward;

(7) Vehicle self-protection function: the whole machine has the function of forced cooling protection of fine water fog;

(8) Night work function: with two high brightness LED headlights, a high brightness LED rear light, gun head searchlight, and red and blue flashlight warning, to meet the needs of night work;

(9) Can work continuously for a long time: 30L diesel tank ensures continuous driving for 5 hours;

(10) Smooth driving: the speed can drive fast, but also climb at low speed;

(11) Reliable quality: engine, fire gun, hydraulic pump, walking motor, electric winch, and other key parts are originally imported from Europe and the United States;

(12) Stable and reliable braking: automatic hydraulic brake device, stable braking, reliable standing slope;

(13) Equipped with 1 ton of electric winch, used for self-rescue and towing, etc.;

(14) Adopt integrated control instrument, remote control, and car body instrument that can display the engine speed, fuel oil level, generator power generation indication, alarm indication, and other important information;

(15) Industrial appearance design;

(16) Optional remote video monitoring, remote monitoring of toxic and harmful gas, remote environmental monitoring, and other functions.

Main performance parameters

4. About US

Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded in April 1989, its history can be traced back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years of historical heritage and specialization in fire equipment manufacture filled many domestic voids. It is also a supplier of China's military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m²floor space, has over 400 sets of production equipment, annual roll out1000fire trucks

The company can provide a complete range and series of fire equipment: water/foam/dry powder fire trucks, rescue trucks, multi-task lighting vehicles, and especially better in building emergency chemical relief vehicles, long-range and high-volume supply fire trucks, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot, and pumping system, etc.

Persists in the “technology leading” differentiation strategy, Grauman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate the domestic market and expand overseas space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Grauman also sincerely looks for talents and organizations to cooperate with the fire equipment business.

5. FAQ:

Q1. Is the product made in China?

A: yes

Q2: Where is the product delivery time?

A: The delivery time of the general Chinese chassis products is four months

03: Where is the delivery method?

A: Steam transportation and sea transportation

04: Where is the payment method?

A: Letter of credit, other ways can be negotiated.
