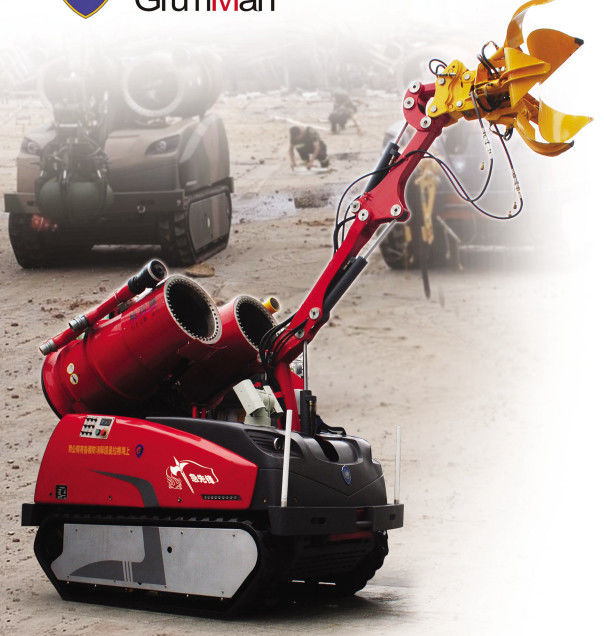

RXR-JM200D Rescue Fire Fighting Robot Car Automatic Fire Sensing And Extinguishing Robot

RXR-JM200D RESCUE FIRE-FIGHTING ROBOTS

1. Applicable to public (railway) tunnel fire; subway station and tunnel fire; underground facilities and freight yard fire; large span, large space fire; petrochemical oil depot and refinery fire; large toxic gas and smoke accidents; attack and cover of dangerous fire targets; fire fighting and rescue.

2.  Main performance parameters

3.  Product features:

(1)Strong fire fighting ability: equipped with two water mist smoke exhaust machine, smoke discharge of 60000 m3/h, wind speed of 43 m/s, water mist range> 35 m, positive and negative pressure smoke exhaust, fine mist fire extinguishing, cooling, haze, dust removal, etc. In addition, imported fire water cannon, a fire foam gun flow of 70 L/s, range of 75m, flowering, DC injection, and automatic adjustable; foam gun flow of 64 L/s, the range is more than 60 m;

(2)Strong rescue ability: 5 degrees of freedom mechanical arm, can grasp 200kg weight, five teeth to grasp the diameter of 800mm, for carrying oil barrels and other dangerous objects transfer, but also can quickly replace the broken hammer for breaking;

(3) Strong power: using 78 kW air-cooled diesel engine, strong power and simple maintenance;

(4)Strong terrain adaptability: hydraulic crawler walking chassis, flexible, can turn in situ, strong climbing ability (up to 35°), can cross obstacles, strong off-road ability, can adapt to complex terrain;

(5)Convenient control: light wireless remote control, can remotely control all the actions of the machine (including start, flameout, forward, backward, steering, fan pitch, fire gun flowering DC, warning light opening and closing, lighting opening and closing, etc.), in addition to a strong interference environment of wired remote control machine action and emergency manual control;

(6)Strong hose towing ability: can drag the total length of 300 meters DN80 filled water belt forward;

(7)With the function of remote control unloading, it can remotely control the robot to be separated from the hose;

(8)The vehicle self-insurance function: robot fuselage has full surrounded by automatic water spray protection system, with 12 spray nozzle: left side each 4, front and rear each 2, evenly distribution, form a water mist protective circle, surrounded by fire fighting robot, can effectively prevent the surrounding environment of thermal radiation into, and at the same time for the robot, guarantee the safe and stable operation of the robot in the fire environment, automatically open when fire fighting;

(9)Night work function: with two high-brightness xenon headlights, red and blue flash lights, etc., to meet the requirements of night work;

(10)Can work continuously for a long time: fuel is added while uninterrupted operation, the continuous working time is up to 16 hours, and the 50L diesel tank can ensure high-speed continuous driving for 4 hours;

(11)Smooth driving: using fast speed two infinite variable speed, can drive fast, can also climb at low speed;

(12)Reliable quality: fire water cannon, hydraulic pump and valve group, motor, walking reducer and other key parts are originally imported from Europe and the United States;

(13)Stable and reliable braking: automatic hydraulic brake device, stable braking, reliable standing slope;

(14)Equipped with a fast charging device, which is used for quick charging in the case of power loss;

(15)Using integrated control instrument, remote control and car body instrument can display the engine speed, fuel oil level, generator power generation indication, oil pressure alarm indication, cylinder temperature alarm indication and other important information;

(16)Industrial appearance design, the cover using anti-corrosion materials, mold manufacturing.

4.  About US

Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded April 1989, its history can trace back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years historical heritage and specialized in fire equipment manufacture filled many domestic void. It is also a supplier of China military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m²floor space, has over 400 sets production equipments, annual roll out1000fire trucks

The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.

Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.

5.  FAQ:

Q1. Is the product made in China?

A: yes

Q2: Where product delivery time?

A: The delivery time of the general Chinese chassis products is four months

03: Where is delivery method?

A: Steam transportation and sea transportation

04: Where is the payment method?

A: Letter of credit, other ways can be negotiated.
