RXR-M180D Robotic Fire Fighting Vehicle 1860kg Fire Prevention Robot

Product Details

Place of Origin: China

Brand Name: GRUMMAN

Certification: ISO9001

Model Number: RXR-M180D FIRE-FIGHTING ROBOTS

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiate

Packaging Details: Naked

Delivery Time: negotiate

Payment Terms: L/C

Supply Ability: 50 unit

Get Best Price
Highlight:

Robotic Fire Fighting Vehicle 300M

,

Robotic Fire Fighting Vehicle 1860kg

,

1860kg fire prevention robot

Overall Dimension (mm):
2560×1480×1760
Overall Weight (kg):
1860
Driving Speed (km/h):
0-5.5 (two Gears)
Climbing Ability:
Climb 35°, Climb 26° Of Stairs
Vertical Height (mm):
210
Waterbelt Towing Capacity:
Total Length Of 300 M DN80 Filled Water Belt
Remote Control Distance (m):
1000m (visual Distance)
Rated Flow Rate (L/s):
180
Water Range (m):
115
Foam Range (m):
105
Overall Dimension (mm):
2560×1480×1760
Overall Weight (kg):
1860
Driving Speed (km/h):
0-5.5 (two Gears)
Climbing Ability:
Climb 35°, Climb 26° Of Stairs
Vertical Height (mm):
210
Waterbelt Towing Capacity:
Total Length Of 300 M DN80 Filled Water Belt
Remote Control Distance (m):
1000m (visual Distance)
Rated Flow Rate (L/s):
180
Water Range (m):
115
Foam Range (m):
105

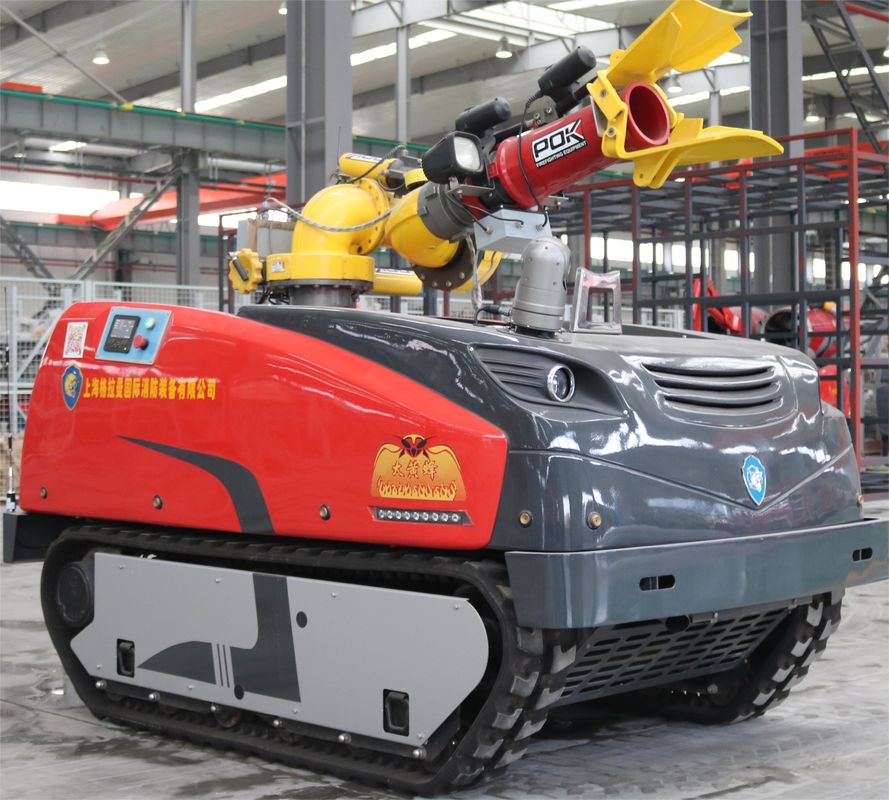

RXR-M180D Robotic Fire Fighting Vehicle 1860kg Fire Prevention Robot

RXR-M180D FIRE-FIGHTING ROBOTS 1860kg



1. It can replace the fire rescue personnel to enter the scene of flammable and explosive, poisonous, lack of oxygen, smoke and other dangerous disasters and accidents to extinguish the fire, and effectively solve the personal safety of the fire rescue personnel facing in the above places. Simple body design, more stable.



2.  Main performance parameters

Overall dimension (mm) 2560*1480*1760
Overall weight (kg) 1860
Driving speed (km/h) 0-5.5 (two gears)
Climbing ability climb 35°, climb 26° of stairs
Vertical height (mm) 210
Waterbelt towing capacity total length of 300 m DN80 filled water belt
Remote control distance (m) 1000m (visual distance)
fire monitor
Rated flow rate (L/s) 180
Water range (m) 115
Foam range (m) 105



3. Product features:

(1)Super fire fighting ability: equipped with large flow water / foam fire cannon imported from France, with flow of 180 L/s and range of 115m, which are the strongest among similar products in China;

(2)Strong power: using 56 kW air-cooled diesel engine, strong power and simple maintenance;

(3)Strong terrain adaptability: hydraulic tracked walking chassis, flexible, steering in situ, strong climbing ability (35°, 26°), can cross obstacles, strong cross-country ability, can adapt to complex terrain;

(4)Convenient control: light wireless remote control, can remotely control all the actions of the machine (including start, flameout, forward, backward, steering, fire gun pitch, turn, flow adjustment, warning light opening and closing, lighting opening and closing, etc.), in addition to a strong interference environment of wired remote control machine action and emergency manual control;

(5)Strong hose towing ability: can drag the total length of 300 meters DN80 filled water belt forward;

(6) With the function of remote control unloading, it can remotely control the robot to be separated from the hose;

(7)The vehicle self-insurance function: robot fuselage has full surrounded by automatic water spray protection system, with 12 spray nozzle: left side each 4, front and rear each 2, evenly distribution, form a water mist protective circle, surrounded by fire fighting robot, can effectively prevent the surrounding environment of thermal radiation into, and at the same time for the robot, guarantee the safe and stable operation of the robot in the fire environment, automatically open when fire fighting;

(8)Night work function: with two high-brightness xenon headlights, two gun head searchlights and red and blue flash light warning, to meet the needs of night work;

(9) Can work continuously for a long time: the 50L diesel tank ensures full power continuous driving for 5 hours, adding fuel while uninterrupted operation, and the continuous working time is up to 16 hours;

(10)Smooth driving: the speed of two infinite variable speed, can drive fast, can also climb at low speed;

(11)Reliable quality: fire gun, hydraulic pump, valve group, walking reducer and other key parts are imported from Europe and the United States;

(12)Stable and reliable braking: automatic hydraulic brake device, stable braking, reliable standing slope;

(13)Equipped with a fast charging device, which is used for quick charging in the case of power loss;

(14)Using integrated control instrument, remote control and car body instrument can display the engine speed, fuel oil level, generator power generation indication, oil pressure alarm indication, cylinder temperature alarm indication and other important information;

(15)Industrial appearance design, the cover using anti-corrosion materials, mold manufacturing;

(16) Optional remote video monitoring, remote monitoring of toxic and harmful gas, remote environmental monitoring and other functions.

RXR-M180D Robotic Fire Fighting Vehicle 1860kg Fire Prevention Robot 0



4. About US

Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded April 1989, its history can trace back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years historical heritage and specialized in fire equipment manufacture filled many domestic void. It is also a supplier of China military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets production equipments, annual roll out1000fire trucks



The company can provide complete range and series of fire equipment: water/foam/dry powder fire truck, rescue truck, multi-task lighting vehicle, and especially better in build emergency chemical relief vehicle, long-range and high-volume supply fire truck, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot and pumping system etc.



Persists in “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate domestic market and expand oversea space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organization to cooperate with the fire equipment business.



5. FAQ:

Q1. Is the product made in China?

A: yes

Q2: Where product delivery time?

A: The delivery time of the general Chinese chassis products is four months

03: Where is delivery method?

A: Steam transportation and sea transportation

04: Where is the payment method?

A: Letter of credit, other ways can be negotiated.
