BP200/DX 1200KG Fire Engine Truck Fire Department Rescue Truck 11502 × 2540 × 3950MM

Product Details

Place of Origin: China

Brand Name: GRUMMAN

Certification: ISO9001

Model Number: BP200/DX Pump fire truck

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiate

Packaging Details: Naked

Delivery Time: negotiate

Payment Terms: L/C

Supply Ability: 100 unit

Get Best Price
Highlight:

1200KG Fire Engine Truck

,

Fire Engine Truck 3950MM

,

ISO9001 fire department rescue truck

Full-load Mass (kg):
28400
Overall Dimensions (mm):
11502×2540×3950
Chassis Brand / Model:
ZZ5356V524MF5
Minimum Turning Diameter (m):
28
Suction Pump Pressure (MPa):
0.4
Maximum Lifting Capacity Of Crane (kg):
1200
Water Belt Capacity Of Water Belt Box (KM):
1
Water Belt Recovery Speed (km/h):
1.5
Full-load Mass (kg):
28400
Overall Dimensions (mm):
11502×2540×3950
Chassis Brand / Model:
ZZ5356V524MF5
Minimum Turning Diameter (m):
28
Suction Pump Pressure (MPa):
0.4
Maximum Lifting Capacity Of Crane (kg):
1200
Water Belt Capacity Of Water Belt Box (KM):
1
Water Belt Recovery Speed (km/h):
1.5

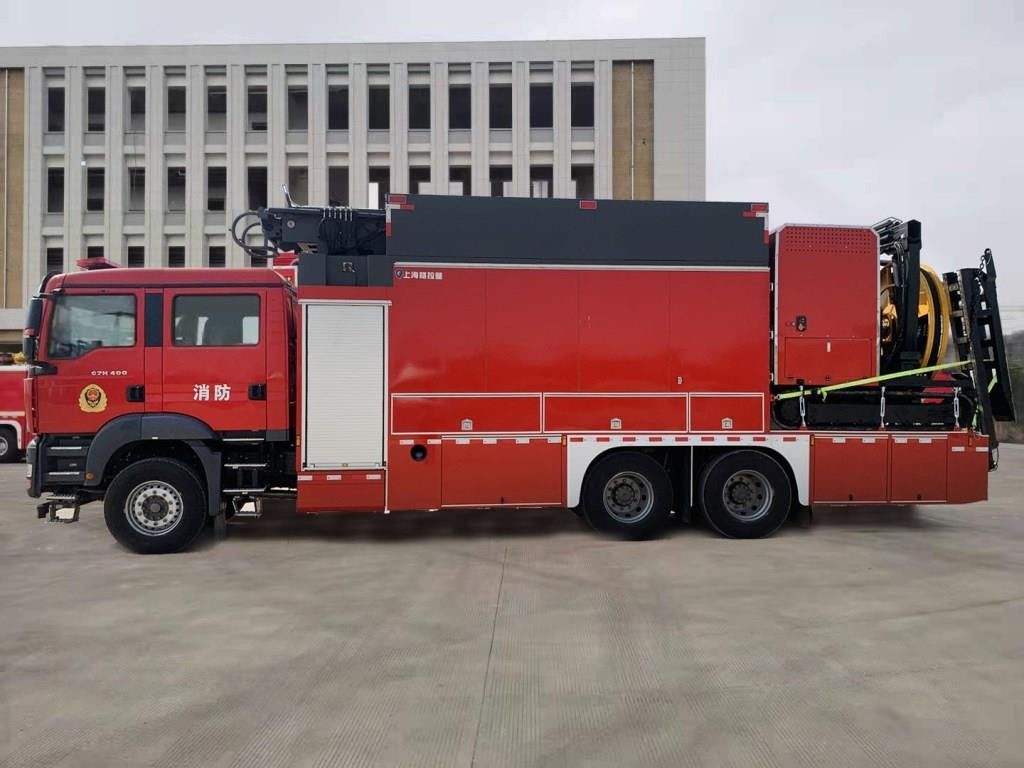

BP200/DX 1200KG Fire Engine Truck Fire Department Rescue Truck 11502 × 2540 × 3950MM

BP200/DX Pump fire truck Length 11502 wide 2540 high 3950



1. Suitable for towns, industrial and mining enterprises and other water sources or fire hydrants and rural areas with sufficient water sources to absorb water, water supply and water injection, fighting fires in buildings and general materials, can also be used as a fire command vehicle.



2. Main performance parameters

Full-load mass (kg): 28400
Overall dimensions (mm):  Length 11502 wide 2540 high 3950
Mass (kg): 27950
Chassis brand/model:

ZZ5356V524MF5

Minimum Turning Diameter (m): 28
Suction pump pressure (MPa): 0.4
Suction pump flow (L/s): 200
Approach angle/departure angle of (°) 18/7
Maximum lifting capacity of crane (kg): 1200
Water belt capacity of water belt box (KM): 1
Laying speed of water belt (km/h): 5
Water belt recovery speed (km/h): 1.5



3. Product features:

High output pressure of suction pump and booster pump ensures that the pressure at the end of the system meets the usage requirements.
The device has the function of automatic belt management, which can scatter the water belts with interfaces on the ground and lay them neatly in the water belt container.
The water belt box is partially partitioned to make the water belt more neatly arranged and increase the amount of water belt placed.
Hydraulic pump hydraulic motor of the hydraulic system adopts international famous brand.
Advanced control system, control panel with a large screen display system status.

BP200/DX 1200KG Fire Engine Truck Fire Department Rescue Truck 11502 × 2540 × 3950MM 0



4. About US

Shanghai Graman International Fire Equipment Co., Ltd. (Graman for Short) was founded in April 1989, its history can be traced back to 1918, the founding of Shanghai Fire Equipment Factory. 95 years of historical heritage and specialization in fire equipment manufacture filled many domestic voids. It is also a supplier of China's military force. Graman’s facility located at 32 Beinei Road with RMB101 million register capitals, occupied 11,000m2floor space, has over 400 sets of production equipment, annual roll out1000fire trucks



The company can provide a complete range and series of fire equipment: water/foam/dry powder fire trucks, a rescue truck, multi-task lighting vehicle, and especially better in building emergency chemical relief vehicles, long-range and high-volume supply fire trucks, turbojet fire truck, 18m~55m water tower/elevated platform fire truck, forcible break rescue fire truck, firefighting robot, and pumping system, etc.



Persists in the “technology leading” differentiation strategy, Graman set up the goal as “Make the firefighting safer, more efficient and more intelligent”. Now Graman will continue to consolidate the domestic market and expand overseas space, firmly follow the innovation road, and constantly develop international-level fire equipment to satisfy customers’ needs. Graman also sincerely looks for talents and organizations to cooperate with the fire equipment business.



5. FAQ:

Q1. Is the product made in China?

A: yes

Q2: Where product delivery time?

A: The delivery time of the general Chinese chassis products is four months

03: Where is delivery method?

A: Steam transportation and sea transportation

04: Where is the payment method?

A: Letter of credit, other ways can be negotiated.
